Last Updated on: 21st March 2023, 04:35 pm

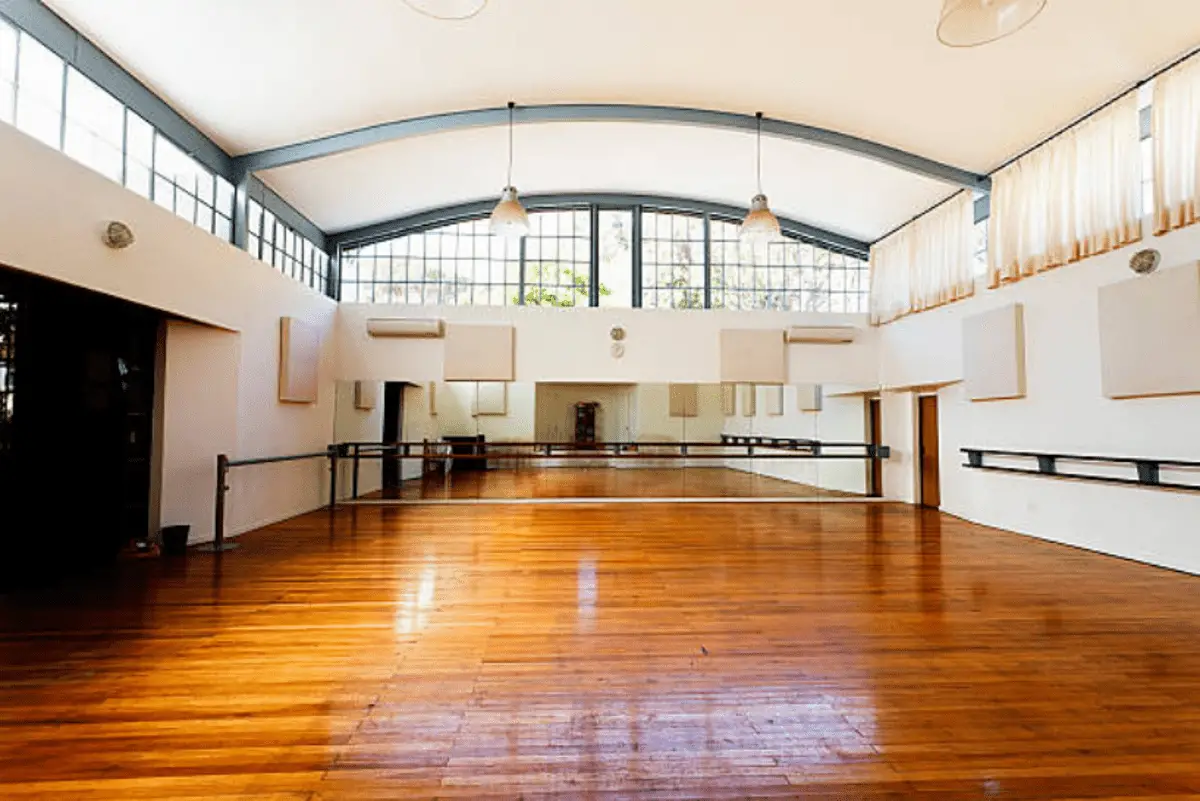

A clerestory roof is a type of roof that includes a row of windows (clerestory windows) along the upper part of a building´s walls. The windows are usually high up and often run the length of the building, providing natural light and ventilation to the space below. Clerestory roofs have been used for centuries and are a popular feature in both traditional and modern architecture.
Historical significance and evolution of clerestory roofs
Clerestory roofs have a long history dating back to ancient times, with examples found in Egyptian and Roman architecture. In these early designs, clerestory roofs were often used to provide natural light and ventilation to large interior spaces like temples and public buildings. They typically featured narrow windows set high in the walls, often made from stone or other durable materials.
In medieval times, the use of clerestory roofs became especially popular in the construction of Gothic cathedrals. These massive structures featured tall, narrow windows set in intrciate stone tracery, which allowed for even more light to enter the space while also creating stunning visual effects. These designs also had practical benefits, as they helped to improve the air circulation and reduce the risk of smoke and fumes accumulating in the interior.
Over time, the design of clerestory roofs continued to evolve, with new materials and styles being introduced. In more recent years, architects have experimented with various shapes, sizes, and orientations of clerestory windows, as wel as various materials like glass, wood, and metal. Modern examples of clerestory roofs can be found in a wide range of buildings, from private homes to commercial structures to public institutions.
What is the purpose of a clerestory roof?
The primary purpose of a clerestory roof is to provide natural light and ventilation to the space below. By using high windows, clerestory roofs alow sunlight to enter the space without sacrificing privacy or security. This can help reduce the need for artificial lighting and improve the energy efficiency of the building. And, clerestory roofs can create a sense of spaciousnes and openness, which can be especially beneficial in buildings with limited floor space.
Another advantage of clerestory roofs is that they can be designed to fit with a wide range of architectural styles. Whether the building is modern or traditional, a clerestory roof can add a unique design element that enhances the overall aesthetic appeal.
Types of clerestory roofs
There are several types of clerestory roofs, each with its own unique features and benefits. One of the most basic types is the shed roof, which has a single slope that runs from one end of the building to the other. This type of roof is often used in modernist or minimalist designs, as it is simple and functional.
Anothercommon type of clerestory roof is the gable roof, which has two sloping sides that meet at the ridge. This design is popular in traditional or rustic buildings, as it can create a cozy, cottage-like feel. A variant of the gable roof is the cross gable roof, whichhas multiple gables that intersect at various angles.
A third type of clerestory roof is the hip roof, which has sloping sides that meet at a point at the top of the roof. This design is often use d in more complex or ornate buildings, as it can create a sense of grandeur or elegance.
Orientation of clerestory windows
The orientation and placement of clerestory windows are salient considerations when designing a clerestory roof. South-facing clerestory windows will receive the most sunlight, which can be beneficial in cooler climates or during the winter months. North-facing wind ows, on the other hand, will provide more consistent light throughout the day, which can be ideal in warmer climates or during the summer months. The orientation of the windows will also affect the amount of heat gain or loss, which can impact the energy efficiency of the building.
The size and placement of windows
The size and placement ofc lerestory windows will depend on the size and function of the space below. Larger windows can provide more natural light, but may also require additional structural support. The placement of the windows can also affect the distribution of light throughout the space, and can impact the aesthetic appeal of the building.
In addition, the materiasl used to construct the roof will also affect the size and placement of windows. A wooden roof, for example, may have diferent weight-bearing capacities than a metal or glass roof, which can impact the size and placement of the windows.
Materials and construction
Clerestory roofs can be made from a variety of materials, each with its own unique properties and benefits. Wood is a common material used for clerestory roofs, as it is durable, versatile, and aesthetically pleasing. Metal, such as steel or aluminum, can also be used for clerestory roofs, as it is lightweight, strong, and resistant to weathering.
Glass is another popular material forclerestory roofs, as it allows for maximum natural light and can create a sleek, modern look. However, glass can also be more expensive than other materials and may require additional structural support.
Regardless of the material used, the con struction of a clerestory roof typicaly involves a team of architects, engineers, and builders working together to create a design that is functional, beautiful, and structurally sound. This may involve using computer modeling and simulations to test individual design options and ensure that the roof can withstand the stresses of wind, rain, and snow. Once a design is finalized, the construction process may involve prefabrication or on-site assembly, depending on the complexity of the roof design.
Pros and cons of clerestory roofs
Like any architectural feature, clerestory roofs have their advantages and disadvantages. Some of the benefits of a clerestory roof include improved natural light and ventilation, reduced need for artificial lighting, and added deisgn appeal. However, some of the disadvantages include the potential for heat los or gain, difficulty with maintenance and cleaning, and potential leakage if not properly installed.
Natural light and ventilation
One of the primary benefits of a clerestory roof is the increased natural light and ventilation it provides. By using high windows, the roof can allow sunlight to enter the space below without sacrificing privacy or security. In addition, clerestory roofs can help increase air flow and ventilation in a building, reducing the need for artificial cooling and ventilation systems.
Improved energy efficiency
One of the main advantages of a clerestory roof is improved energy efficiency. By allowing natural light to enter the building, clerestory roofs can reduce the need for artificial lighting during the day. Further, t he design of the roof alows for better ventilation, which can help regulate indoor temperature and reduce the need for heating and cooling.
Privacy and security
Clerestory roofs are also known for their ability to provide privacy and security. The location of the windows at the top of the roof allows for natural light to enter the building without compromising privacy. As well, the height of the windows providesan extra layer of security against intruders.
Design appeal
Clerestory roofs can add a unique design element to a building and create an airy, open feeling. The use of high windows can create a dramatic visual effect and give the impression of a larger space. The design of the roof can also be customized to fit a wide range of architectural styles, from traditional to moder n.
Heat loss or gain
One of the potential disadvantages of a clerestory roof is the risk of heat loss or gain. Since the windows are located high up inthe roof, they can allow for heat to escape during the winter months, potentially increasing heating costs. Conversely, during the summer months, the windows can allow for heat to enter the building, potentially increasing cooling costs. However, this can be mitigated with proper insulation and shading devices.
Maintenance and cleaning Issues
Another potential drawback of a clerestory roofis the difficulty with maintenance and cleaning. Since the windows are located high up, it may be challenging to access them for cleaning or repairs. In addition, debris or leaves can accumulate on the roof, which can lead to clogged gutters or drainage systems.
Leakage
Improper instalation or maintenance of a clerestory roof can lead to potential leakage. The design of the roof can make it vulnerable to leaks, especially if the flashing and sealing are not properly installed. This can lead to damage to the interior of the building and potentially costly repairs.
The use of clerestory windows in public and religious buildings
Clerestory roofs have a long history of use in temples and other large public buildings. Ancient Egyptian and Roman temples often featured clerestory roofs with intricate designs and carvings. The design allowed for natural light to enter the building, creating a sense of awe and wonder among visitors.
Modern residential and commercial architecture
Modern residential and commercial architecture has embraced the use of clerestory roofs for their functional and aesthetic benefits. In residential buildings, clerestory windows are often used to provide natural light to areas of the home that may be lacking in windows, such as hallways or bathrooms. They can also be used to create a dramatic effect in living spaces,allowing natural light to stream in from high above.
In commercial buildings, clerestory roofs are often used in public spaces such as museums, libra ries, and galleries, where natural light is essential for viewing artwork and exhibits. They canalso be found in office buildings, where the increased natural light and ventilation can create a more comfortable and productive work environment.
Notable examples
Notable examples of buildings with clerestory roofs include the Solomon R. Guggenheim Museum in New York City, the Royal Shakespeare Theatre in England, and the Palace of Westminster in London.
Comparison to skylights and other roofing features
Clerestory roofs are often compared to skylights and other roofing features, such as dormer windows. While skylights are located on the roof and can cause issues with glare and heat gain, clerestory roofs are located higher up on the wall, providing more consistent light throughout the da y.
Further, clerestory roofs are often designed to allow for natural ventilation, which can help regulate indoor temperature and reduce the need for artificial coolinga nd ventilation systems. Skylights, on the other hand, typically do not allow for ventilation and can actually contribute to heat gain in the summer months.
Dormer windows are another roofing feature that is often compared to clerestory roofs. Dormers are typically locatedon the sloping part of the roof and project outwards, providing additional headroom and natural light to upper-level rooms. However, they are not as effective at providing natural light and ventilation to larger interior spaces, and can be more challenging to design and install than clerestory roofs.
In terms of design, clerestory roofs can be a more subtle and se amless addition to a building´s architecture than skylights or dormer windows. They can be designed to blend in with the overall structure of the building, creating a cohesive and harmoniousaesthetic.
Sustainability and environmental considerations for clerestory roofs
Clerestory roofs can be designed with sustainability and environmental considerations in mind. For example, using eco-friendly materials like sustainably-sourced wood or recycled metal can help reduce the environmental impact of the project. And, the design of the roof can be optimized to maximize natural light and ventilation, reducing the need for artificial lighting and heating or cooling systems. This can help lower energy consumption and costs, and also reduce the carbon footprint of the building.
Maintenance and upkeep of clerestory roofs
Like any roofing system, clerestory roofs require regular maintenance and upkeep to ensure they remain in good condition. This can include cleaning the windows to remove dirt and debris that can obstruct natural light, as wel as inspecting the roof for any signs of damage or leaks. It´s wise to ensure that any leaks or damage are promptly addressed, as they can lead to more serious issues if left unchecked. Proper ventilation is also crucial for maintaining the integrity of the roof and preventing issueslike condensation or mold growth.
Cost considerations and budgeting for a clerestory roof project
The cost of a clerestory roof project will depend on a range of factors, including the size and design of the roof, the materials used, and the location of the building. Budgeting and planning ahead can help ensure that the project stays within budget. It´s salient to consider not only the upfront costs of the project, but also the long-term costs associated with maintenanceand upkeep. Choosing high-grade materials and working with experienced professionals can help ensure that the project is completed on time and within budget, and that the re sulting roof is durable and reliable.
Do clerestory roofs cost more than other roofs?
Clerestory roofs can be more expensive than traditional roofs due to the aditional construction requirements for the high windows and the need for additional structural support. The cost of a clerestory roof will depend on a variety of factors, such as the size and design of the roof, the materials used, and the complexity of the installation.
Clerestory roofs made from high-end materials like glass can also be more expensive than those made from other materials like metal or wood. However, the energy efficiency benefits of clerestory roofs, such as reduced need for artificiallighting and ventilation, can help offset some of the upfront costs over time.
It´s necessary to note that the cost of a c lerestory roof should be considered in the context of the overall building project. In some cases, the added benefits and aesthetic appeal ofa clerestory roof may make it a worthwhile investment for the building owner or developer. It´s also indispensable to work with experienced professionals who can help design and install the roof efficiently and effectively, minimizing costs and ensuring long-term du rability and reliabiliyt.
Variations of clerestory roofs in individual regions or cultures around the world
While clerestory roofs are most commonly associated with European and North American architecture, similar roofing features can be found in many various cultures around the world. In Japan, for example, clerestory-like roofs are called ranma and are often found in traditional wooden buildings. In Korea, there is a similar style of roof known as a hanok. These roofs are typically made from clay tiles and feature a raised section in the center that allows for natural light and ventilation.
Common misconceptions or myths about clerestory roofs
One commonmisconception about clerestory roofs is that they are only suitable for large, public buildings such as museums and churches. In r eality, clerestory roofs can be used in a wide range of residential and commercial settings, and can be adapted to fit buildings of any size or style. Another misconception is thatclerestory roofs are extremely expensive or difficult to install. While they do require careful planning and design, a well-executed clerestory roof can be an affordable and sustainable roofing solution.
Future trends in clerestory roof design and technology
As sustainability and energy efficiency become increasingly indispensable considerations in modern architecture, we can expect to see more innovative and advanced clerestory roof designs in the future. This may include the use of smartglass or other high-tech materials to control light and heat gain, as well as the integration of renewable energy sources such as solar pa nels into the design of the roof. In addition, as more buildings are designed with a focus on wellness and human comfort, we may see clerestory roofs that incorporate features like natural ventilationa nd biophilic design principles.
